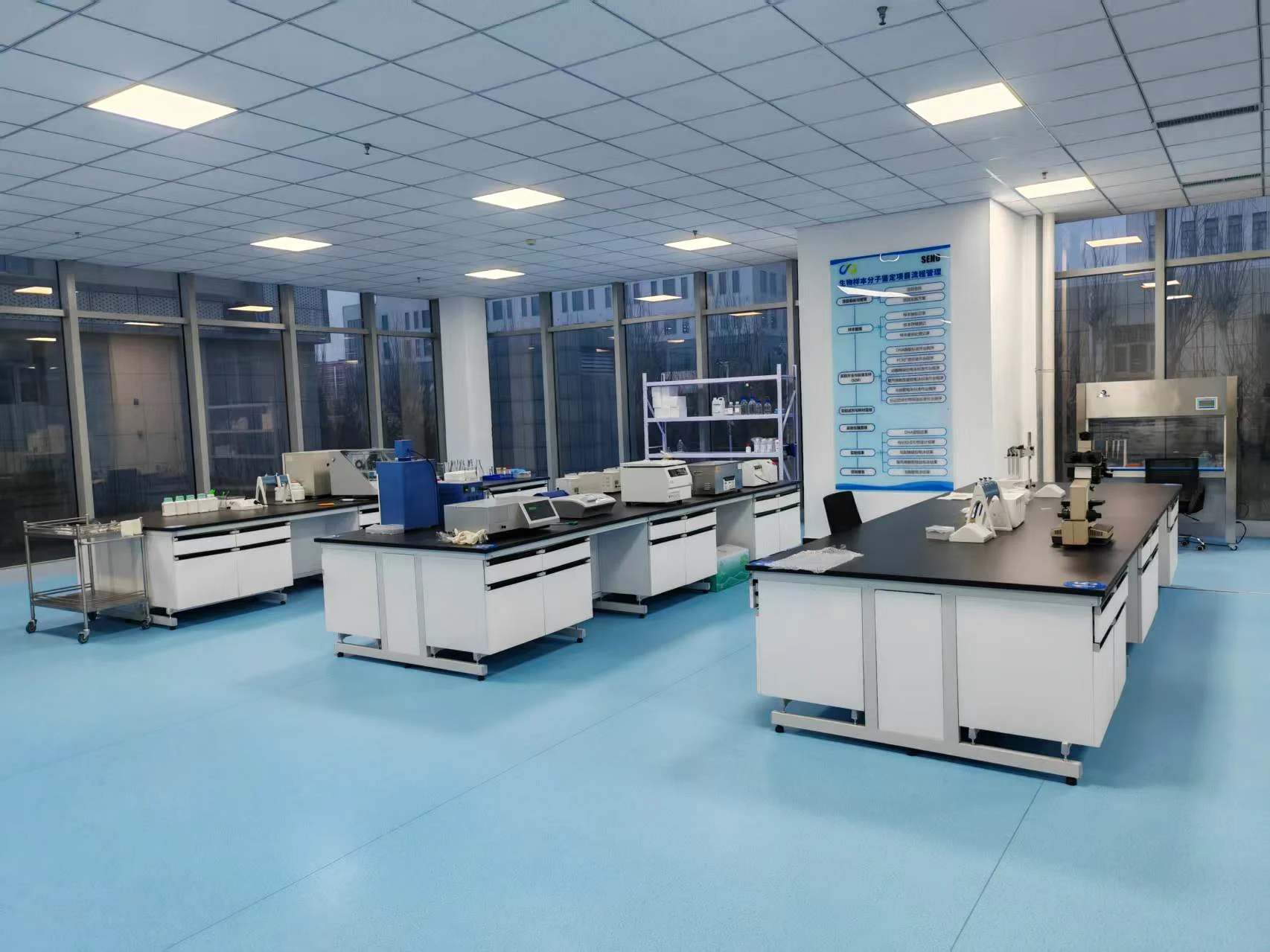

Potato flakes quality laboratory panoramic view

Knowledge Center · Laboratory Decision File

Potato Flakes Quality Laboratory: Compare the Method Before the Result

A buyer-facing guide to reducing sugars, moisture, ash, iodine colour, blue-value records, viscosity, bulk density, particle structure, hydration and microbiological control in potato flakes.

12Reducing-sugar routes

Reference only

All website figures are technical discussion references. Contract acceptance follows the current approved TDS, COA, named method/version, sample, reporting basis and signed specification.

Four labels belong beside every laboratory number

A result can be analytically correct and still be commercially misleading when the extraction, unit, moisture basis or decision rule is missing.

Reference Matrix

01 · SAMPLE

Product, lot, date, container, condition, preparation and retained control.

02 · METHOD

Standard number, year/version, instrument, extraction and any deviation.

03 · BASIS

As-received or dry basis, unit, equivalent sugar and rounding rule.

04 · DECISION

Contract limit, uncertainty, replicate rule and retest/rejection procedure.

Reference Matrix

Reference values by source and method basis

The table deliberately separates published Chinese-standard values, current company specification references and a separate historical QC reference. They are not one combined sales specification.

Parameter	Reference value	Source type	Interpretation rule
01Moisture	6–8% current potato-flake specification reference; LS/T 3321—2023 general maximum 10.0%	Company specification referencePublished standard	Use GB 5009.3 or the agreed validated route. State as-received/dry basis; water activity is a separate result.↘
02Reducing sugars	Fried-product direction ≤1.5%; baked/general direction <3%; LS/T 3321 maximum 3.0%	Application reference rangePublished standard	Name GB 5009.7 titration, DNS equivalent, HPLC profile or another route. Match extraction, basis and unit before comparison.↘
03Ash	LS/T 3321—2023: ≤3.5% on dry basis	Published standard	Use GB 5009.4 or the contract method. Added salts or process aids can change total ash.↘
04Black specks	Current specification reference ≤50/100 g; LS/T 3321 maximum ≤100/100 g	Company specification referencePublished standard	Fix sample mass, illumination, spreading thickness, count definition and operator rule.↘
05Particle direction	20–40 mesh for coarse bait evaluation; 60–80 mesh common finer direction	Application reference range	Report full sieve retention, device, time and pan fraction; avoid grinding the test portion.↘
06Loose bulk density	220–250 g/L current potato-flake specification reference	Company specification reference	Loose and tapped density differ. State conditioning, cylinder, fill height, levelling and repetition.↘
07Iodine colour / blue value	LS/T 3321 cooked whole-potato-flour Iod: 2–5; separate historical record: 38.06	Published standardHistorical QC reference	Do not compare 38.06 directly with Iod 2–5; method, wavelength and formula differ.↘
08Viscosity	No universal company number stated	Method dependent	Record instrument, geometry, solids, hydration, shear, temperature program, time and unit.↘
09Microbiology	TBC ≤10⁵; yeast/mould ≤2×10³; coliforms ≤100; E. coli ≤10; B. cereus ≤100 CFU/g; Salmonella negative	Current specification reference	Confirm product specification, sampling plan, test portion, method version, unit and destination rule.↘

Selected parameterMoisture

Reference direction

6–8% current potato-flake specification reference; LS/T 3321—2023 general maximum 10.0%

Interpretation rule

Use GB 5009.3 or the agreed validated route. State as-received/dry basis; water activity is a separate result.

Reference only. LS/T 3321—2023 applies to whole-potato flour and differentiates uncooked and cooked products. Confirm applicability to the exact product named in the contract.

Reducing Sugars

Twelve routes for four different decisions

Select the method from the purpose: official release, routine process screen, individual-sugar profiling or application-linked browning assessment.

01 · China official route

GB 5009.7 Direct Titration

Reducing sugars react with standardised alkaline copper tartrate during controlled boiling and are quantified at the prescribed endpoint.

Output: Method-defined total reducing sugars.
Use: Release/contract testing when named.
Control: Extraction, clarification, standardisation, boiling rate and endpoint.

02 · China official route

GB 5009.7 Permanganate Titration

Reduced copper is processed through an iron reaction and quantified with potassium permanganate.

Output: Method-defined reducing-sugar value.
Use: Official/reference testing where selected.
Control: Precipitate handling, washing, reagent factor and endpoint.

03 · Classical direct route

Lane–Eynon

A clarified sugar extract titrates hot Fehling solution using the chosen endpoint system.

Output: Selected-sugar equivalent.
Use: Legacy specifications and routine labs.
Control: Matrix colour, boiling, endpoint and standard factor.

04 · Classical back titration

Luff–Schoorl

After controlled heating with excess copper reagent, residual oxidant capacity is determined iodometrically.

Output: Lookup/calculation-based reducing sugar.
Use: Classical food analysis where specified.
Control: Blank, reflux time, cooling and thiosulfate standardisation.

05 · Routine colour screen

DNS Colorimetry

3,5-Dinitrosalicylic acid develops colour with reducing power under controlled alkaline heating; absorbance is commonly read near 540 nm.

Output: Usually glucose-equivalent reducing power.
Use: R&D and process trending.
Control: Blank, ≥5 standards, time, temperature, matrix colour and recovery.

06 · Sensitive classical assay

Nelson–Somogyi

Copper reduction is followed by molybdate colour development and spectrophotometric measurement.

Output: Calibration-standard equivalent.
Use: Research and lower-level comparison.
Control: Multi-step reagent preparation, timing and matrix blank.

07 · Research colour assay

PAHBAH

p-Hydroxybenzoic acid hydrazide produces a measurable response with reducing sugars during alkaline heating.

Output: Calibration-standard equivalent.
Use: Validated spectrophotometric/microplate screening.
Control: Temperature, reagent stability and matrix interference.

08 · Selective enzymatic

Enzymatic UV Assay

Enzyme-coupled reactions quantify selected sugars through NAD(P)H absorbance, commonly at 340 nm.

Output: Glucose/fructose separately or a defined sum.
Use: Selective confirmation and root-cause work.
Control: Kit scope, recovery, reagent storage and interference.

09 · Individual sugar profile

HPLC–RI

A chromatographic method separates and quantifies named sugars against certified standards.

Output: Individual glucose, fructose and other sugars.
Use: Profile confirmation and dispute investigation.
Control: Column, temperature, filtration, calibration and identification.

10 · Advanced profile

HPAEC–PAD

High-pH anion-exchange separation with pulsed amperometric detection supports sensitive multi-sugar profiling.

Output: Individual sugars at low concentration.
Use: Advanced R&D and trace-level comparison.
Control: Eluent purity, system stability and specialist competence.

11 · Calibrated rapid screen

NIR Prediction

A product-specific spectral model predicts the result of its named reference method.

Output: Predicted value, not direct wet chemistry.
Use: High-throughput intake/process screening.
Control: Calibration population, bias, drift and periodic reference checks.

12 · Application result

Controlled Fry-Colour Test

A fixed dough/product is fried under controlled conditions and scored visually or by instrumental L*a*b* colour.

Output: Colour score—not sugar percentage.
Use: Finished-product browning risk.
Control: Recipe, thickness, oil, actual temperature, load and time.

OFFICIAL RELEASE

Use the standard and version written in the applicable specification. Do not silently substitute a rapid screen.

PROCESS TREND

Use validated DNS or NIR to flag drift, then confirm out-of-trend material with the agreed reference method.

ROOT CAUSE

Use HPLC, enzymatic analysis or another validated profile when glucose and fructose must be separated.

FRY RISK

Pair chemistry with a controlled fry-colour test; the colour result remains an application outcome.

Physical & Functional

Physical, chemical and functional test routes

Moisture, sugar and ash support release decisions; structure, hydration and viscosity help explain behaviour in snack dough, mash, dry mixes and bait.

Moisture

Water versus loss on drying

Select one validated route and keep it consistent.

GB 5009.3 hot-air oven for the named matrix
Vacuum oven for suitable heat-sensitive comparison
Halogen analyser for calibrated process screening
Karl Fischer for water-specific measurement
Water activity reported separately

Formula — Basic mass-loss expressionw (%) = (m₀ − m₁) ÷ m₀ × 100

Use the official method calculation and tare definitions in actual testing.

Ash

Controlled mineral residue

Precondition the crucible, weigh, char without sample loss, ash under the selected GB 5009.4 conditions, cool in a desiccator and reweigh to constant mass.

Report dry basis when required
Record furnace program and completion rule
Use blanks or duplicates where applicable
Interpret added salt separately

Formula — Dry-basis conversionXdb = Xar × 100 ÷ (100 − w)

Convert only when both results refer to the same representative sample.

Iodine Colour & Blue Value

Keep three numerical systems separate

LS/T 3321—2023 uses a defined iodine-colour method for whole-potato flour. Its Iod number is not interchangeable with an internal blue-value record or a legacy commercial index.

Formula — LS/T 3321—2023 Iod route, summarised

2.0000 g + 20.0 mL H₂O → 50±1°C / 30 min → 3000 r/min / 10 min → 1.00 mL + pH 5.8 + 0.05 mol/L I₂/KI → 50 mL → A₅₇₀ → Iod = 2 × A

The official standard and laboratory SOP govern testing. The internal value 38.06 remains tied to its own method.

Viscosity

A profile, not one number

Fix solids, water, prehydration, mixing and temperature program.

RVA peak, trough, breakdown, final and setback
Brabender BU with stated geometry and program
Brookfield spindle, speed, temperature and time
Cold-water viscosity for instant or bait applications
No unit conversion without validation

Bulk density

Loose fill versus tapped fill

Fill a calibrated cylinder without compacting, level the surface and divide sample mass by occupied volume.

Current loose reference: 220–250 g/L
Condition sample and cylinder consistently
Record fill height and levelling technique
Report tapped density under a separate procedure

Particle structure

Sieve distribution and fines

Use a fixed mass, sieve stack, time and device; report percentage retained on every sieve.

20–40 mesh coarse bait direction
60–80 mesh common finer direction
Report oversize and pan fractions
Avoid grinding the test portion

Appearance

Colour, specks and defects

Use controlled lighting, a defined viewing mass and an agreed defect definition.

Count black specks per 100 g where specified
Keep count separate from mass percentage
Instrumental L*a*b* can support visual grading
Photograph beside a retained control

Hydration

Water absorption and reconstitution

Record sample and water mass, temperature, order, mixing energy, rest time and separation rule.

Water absorption in g water/g dry sample
Free water and rehydrated texture
Dough, mash or bait application test
Duplicates versus a retained control

Additional controls

pH, sulphite, sand and contaminants

Add tests according to product, process, buyer and destination.

pH with stated slurry concentration
SO₂ with agreed method and reporting limit
Heavy metals or residues where required
Sand and magnetic metal where applicable

Microbiology

Counts and pathogen absence answer different questions

Low indicator counts do not prove pathogen absence. Sampling plan, test portion, method, unit and reporting limit belong beside every result.

TOTAL PLATE COUNT≤1×10⁵ CFU/g

Current company specification reference; confirm the current method and product specification.

YEAST & MOULD≤2×10³ CFU/g

Record incubation conditions and separate reporting when required.

COLIFORMS≤100 CFU/g

Do not mix CFU and MPN units without an agreed rule.

E. COLI≤10 CFU/g

State the method and confirmation procedure.

B. CEREUS≤100 CFU/g

Confirm enumeration, confirmation and reporting limit.

SALMONELLANegative in agreed portion

State the test portion, sampling plan and current method version; this is not a count result.

Workflow

A batch workflow procurement can audit

Separate sample preparation, measurement and commercial acceptance so the result can be repeated and defended.

Plan

Define product, lot, purpose, method, unit and acceptance rule.

Sample

Take representative increments and protect identity and condition.

Prepare

Homogenise without unnecessary heat, moisture change or starch damage.

Control

Run blanks, standards, duplicates, recovery and control material as applicable.

Report

Include method/version, basis, unit, calculation, uncertainty and deviation.

Decide

Compare only with the matching contract rule and application trial.

Laboratory interpretation FAQ

Questions that prevent method differences from turning into procurement disputes.

01Can DNS, titration and HPLC reducing-sugar results be compared directly?+

Not automatically. They measure different analytical responses. Extraction, reporting basis, dilution, calibration and unit must all match before comparison.

02Is the internal blue-value record 38.06 comparable with Iod 2–5?+

No. The internal value and the LS/T 3321 iodine-colour value belong to different methods and numerical systems.

03Why can moisture analyser and oven results differ?+

A halogen analyser uses a faster heating profile than the official oven method. Calibrate it against the reference method for the same product and range.

04Which results matter most for fried fabricated potato products?+

Reducing sugars and controlled fry colour assess browning; moisture, particle size, hydration, cell damage and viscosity explain processing and texture.

05Can loose density be converted to tapped density?+

Not with a universal factor. Vessel, tapping history, sample structure and fines affect the result; measure each by its own procedure.

06Which documents should accompany a buyer result comparison?+

Provide lot identity, sampling record, current TDS/COA, method/version, raw readings, calculation, basis, unit, controls, deviations and acceptance specification.

Sources

Chinese reference framework

Primary sources define the standard and analytical context. Company specification references remain separately labelled and require current TDS/COA confirmation.

LS/T 3321—2023Whole-potato flour classification, indicators, methods, inspection, labelling, packaging, transport and storage.Open official standard PDF →GB 5009 SeriesLS/T 3321 cites GB 5009.3 for moisture, GB 5009.4 for ash and GB 5009.7 for reducing sugars.Open official standards catalogue →Contract ControlDestination-market rules, the signed specification and approved current documents govern commercial release.Discuss a method-specific specification →

Ask for the method behind every number.

For sample or batch comparison, send the application, target limit, current method/version, reporting basis, required documents, estimated volume and destination market.

Request a Quality Review →

Start a quality and methods discussion

Share the product, standard, method version, sample basis and destination — our quality team will prepare the technical file.

Email inquiry ↗WhatsApp export team ↗

TECHNICAL REVIEW · METHODS & ACCEPTANCE

Technical review: Potato Flakes Quality Laboratory and Buyer Test Parameters

Technical data is only comparable when the method, sample basis, unit and test conditions are clear. Use this section to identify the parameters that should be controlled during incoming inspection, line trials and lot release.

Reference values are not a substitute for an agreed commercial specification. Confirm the method version and acceptance limit in the TDS or contract, then verify each supplied lot with the relevant COA or test record.

Method & sample basis

Check method version, units and sample preparation before comparing values.

potato flakes quality laboratory
potato flour quality control
potato flour test methods
reducing sugar testing

Measured parameters

Focus on the technical parameters that influence quality and application performance.

low reducing sugar potato flakes
microbiological specification
particle size and mesh
bulk density

Acceptance evidence

Use agreed specifications, COA data and traceability records for acceptance.

potato flour color control
potato flakes rehydration
batch COA
batch traceability

Technical verification checklist

Method versionSample basisUnitsSpecification limitCOA / test recordTraceability
